Station Displacement CRAT (Tanimbar Utara)
Northing
Easting
Up
Zenith Wet Delay
Number of Satellites
GPS
GLONASS
Galileo
Beidou
Position Dilution Of Precision (PDOP)
|
BADAN INFORMASI GEOSPASIAL (BIG)
Jalan Raya Bogor KM 46
Kawasan Sains dan Teknologi Cibinong, Kab. Bogor, Jawa Barat 16911 |
|
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DESKRIPSI STASIUN CORS | |||||||||||||||||
| Kode Stasiun | CRAT | Nama Stasiun | Larat | ||||||||||||||
| Desa/Kelurahan | Ritabel | Kabupaten/Kota | Kepulauan Tanimbar | ||||||||||||||
| Kecamatan | Tanimbar Utara | Provinsi | Maluku | ||||||||||||||
| Lintang | -7.1531557083333 | Bujur | 131.71374047222 | ||||||||||||||
| Uraian lokasi | Pilar berada diatas bangunan pasang surut Pelabuhan Larat. Pelabuhan Larat UPP Kelas II Saumlaki | ||||||||||||||||
| KOORDINAT DAN LAJU KECEPATAN STASIUN CORS (SRGI2013 EPOCH 2021.0) | |||||||||||||||||
| Koordinat Kartesian | Koordinat Geodetik | ||||||||||||||||
| X | -4211293.3710 ± 0.0058 meter | Lintang | 7º 9' 11.36055'' LS | ||||||||||||||
| Y | 4724370.4940 ± 0.0063 meter | Bujur | 131º 42' 49.46570'' E | ||||||||||||||
| Z | -788949.4190 ± 0.0023 meter | Tinggi Ellipsoid (h) | 52.752 meter | ||||||||||||||
| Kecepatan Pergeseran Kartesian | Kecepatan Pergeseran Toposentrik | ||||||||||||||||
| Vx | -0.030 meter/tahun | V utara | 0.055 meter/tahun | ||||||||||||||
| Vy | -0.021 meter/tahun | V timur | 0.036 meter/tahun | ||||||||||||||
| Vz | 0.055 meter/tahun | V vertikal | -0.002 meter/tahun | ||||||||||||||
| PERANGKAT | |||||||||||||||||
| Receiver | TRIMBLE ALLOY | Radome | SCIS | ||||||||||||||
| Antena | TRM159900.00 | Tinggi Antena | 0.056 meter | ||||||||||||||
| Tahun Dibangun | 2019 | Ket. Tinggi Antena | Bottom of Antenna Mount | ||||||||||||||
| Komunikasi Data | OFFLINE | ||||||||||||||||
| FOTO DAN SKETSA | |||||||||||||||||

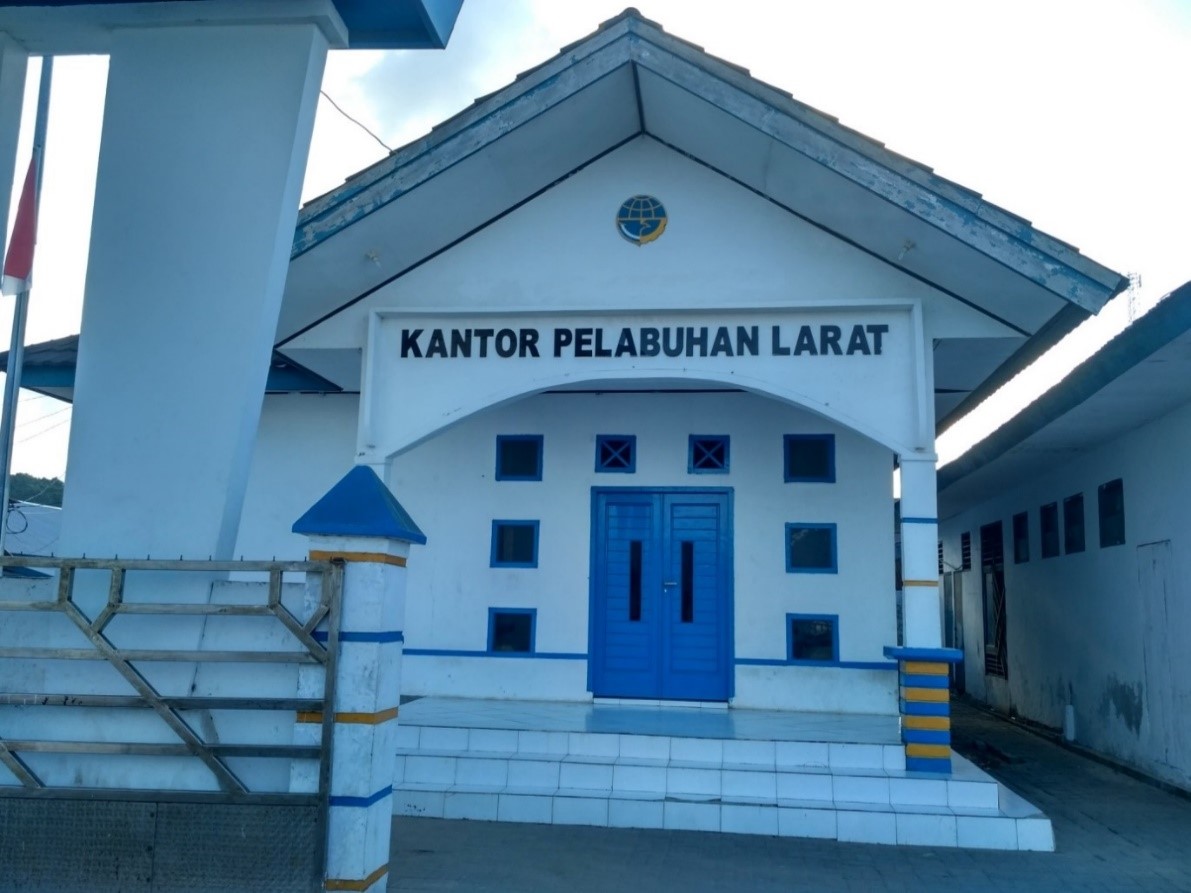

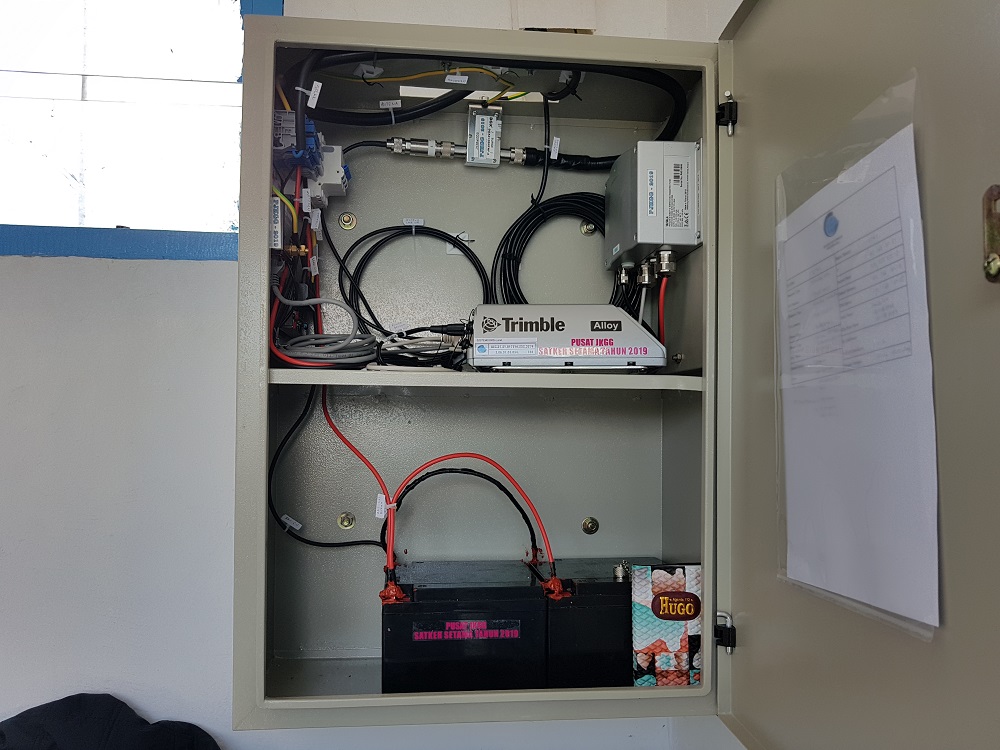

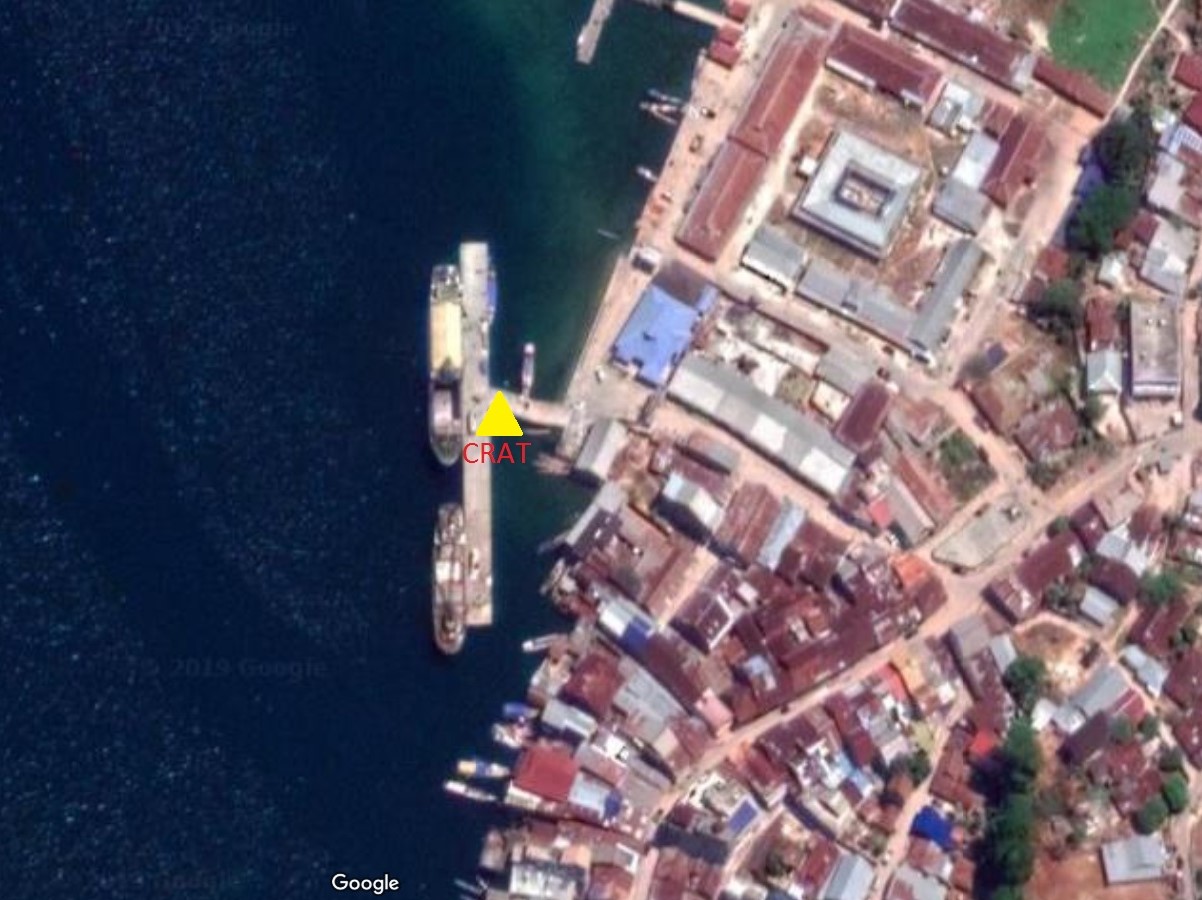

| Foto Monumen CORS | Sketsa Lokasi | ||||||||||||||||
|
|
||||||||||||||||
|
Tanggal Pembaharuan :
2025-04-16 00:00:00
Deskripsi CORS ini dibuat dan disebarluaskan oleh Direktorat Sistem Referensi Geospasial (DSRG) BIG. Koordinat CORS menggunakan sistem referensi SRGI2013 epoch 2021.0. Status secara realtime silahkan kunjungi http://nrtk.big.go.id/sbc. |
|||||||||||||||||
CRAT Site Information Form
Indonesia Continuously Operating Reference Station (Ina-CORS)
See Instructions at:
ftp://www.igs.org/pub/station/general/sitelog_instr.txt
0. Form
Prepared by (full name) : Yunanta Cahya Daniswara
Date Prepared : 2022-04-17
Report Type : NEW
If Update:
Previous Site Log :
Modified/Added Sections :
1. Site Identification of the GNSS Monument
Site Name : Larat
Four Character ID : CRAT
Monument Inscription :
IERS DOMES Number :
CDP Number :
Monument Description : PILLAR ON THE ROOFTOP
Height of the Monument : 1.2 m
Monument Foundation : CONCRETE
Foundation Depth : 0.1 m
Marker Description : (CHISLED CROSS/DIVOT/BRASS NAIL/etc)
Date Installed : 2019-12-09
Geologic Characteristic : (BEDROCK/CLAY/CONGLOMERATE/GRAVEL/SAND/etc)
Bedrock Type : (IGNEOUS/METAMORPHIC/SEDIMENATRY)
Bedrock Condition : (FRESH/JOINTED/WEATHERED)
Fracture Spacing : (1-10 cm/11-50 cm/51-200 cm/over 200 cm)
Fault zones nearby : (YES/NO/Name of the zone)
Distance/activity : (multiple lines)
Additional Information : (multiple lines)
2. Site Location Information
City or Town : Kepulauan Tanimbar
State or Province : Maluku
Country : Indonesia
Tectonic Plate : Banda Sea-Australia
Approximate Position (ITRF)
X coordinate (m) : -4211293.371
Y coordinate (m) : 4724370.494
Z coordinate (m) : -788949.419
Latitude (N is +) : -070911.3605499999997
Longitude (E is +) : +1314249.4656999999665
Elevation (m,ellips.) : 52.752
Additional Information : ARP IGS14 Position (Epoch 2021.00)
3. GNSS Receiver Information
3.1 Receiver Type : TRIMBLE ALLOY
Satellite System : GPS+GLO+GAL+BDS+QZSS+SBAS
Serial Number : 5945R40071
Firmware Version : 5.43
Elevation Cutoff Setting : 10 deg
Date Installed : 2019-12-09
Date Removed : (CCYY-MM-DDThh:mmZ)
Temperature Stabiliz. : none
Additional Information : -
3.x Receiver Type :
Satellite System :
Serial Number :
Firmware Version :
Elevation Cutoff Setting : 10 deg
Date Installed : (CCYY-MM-DDThh:mmZ)
Date Removed : (CCYY-MM-DDThh:mmZ)
Temperature Stabiliz. : none
Additional Information : (multiple lines)
4. GNSS Antenna Information
4.1 Antenna Type : TRM159900.00
Serial Number : 5942338800
Antenna Reference Point : ARP
Marker->ARP Up Ecc. (m) : 0.056
Marker->ARP North Ecc(m) : 0.0000
Marker->ARP East Ecc(m) : 0.0000
Alignment from True N : 0 deg
Antenna Radome Type : SCIS
Radome Serial Number :
Antenna Cable Type : -
Antenna Cable Length : -
Date Installed : 2019-12-09
Date Removed : (CCYY-MM-DDThh:mmZ)
Additional Information : -
4.x Antenna Type :
Serial Number :
Antenna Reference Point : ARP
Marker->ARP Up Ecc. (m) :
Marker->ARP North Ecc(m) : 0.0000
Marker->ARP East Ecc(m) : 0.0000
Alignment from True N : 0 deg
Antenna Radome Type :
Radome Serial Number :
Antenna Cable Type : -
Antenna Cable Length : -
Date Installed : (CCYY-MM-DDThh:mmZ)
Date Removed : (CCYY-MM-DDThh:mmZ)
Additional Information : (multiple lines)
5. Surveyed Local Ties
5.x Tied Marker Name :
Tied Marker Usage : (SLR/VLBI/LOCAL CONTROL/FOOTPRINT/etc)
Tied Marker CDP Number : (A4)
Tied Marker DOMES Number : (A9)
Differential Components from GNSS Marker to the tied monument (ITRS)
dx (m) : (m)
dy (m) : (m)
dz (m) : (m)
Accuracy (mm) : (mm)
Survey method : (GPS CAMPAIGN/TRILATERATION/TRIANGULATION/etc)
Date Measured : (CCYY-MM-DDThh:mmZ)
Additional Information : (multiple lines)
6. Frequency Standard
6.1 Standard Type : INTERNAL
Input Frequency : (if external)
Effective Dates : 2019-12-09
Notes : (multiple lines)
6.x Standard Type : (INTERNAL or EXTERNAL H-MASER/CESIUM/etc)
Input Frequency : (if external)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
7. Collocation Information
7.1 Instrumentation Type : (GPS/GLONASS/DORIS/PRARE/SLR/VLBI/TIME/etc)
Status : (PERMANENT/MOBILE)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
7.x Instrumentation Type : (GPS/GLONASS/DORIS/PRARE/SLR/VLBI/TIME/etc)
Status : (PERMANENT/MOBILE)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
8. Meteorological Instrumentation
8.1.1 Humidity Sensor Model :
Manufacturer : Vaisala PTU 303
Serial Number : R4310960
Data Sampling Interval : 30 sec
Accuracy (% rel h) : (% rel h)
Aspiration : (UNASPIRATED/NATURAL/FAN/etc)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : 2019-12-09/CCYY-MM-DD
Notes : (multiple lines)
8.1.x Humidity Sensor Model :
Manufacturer :
Serial Number :
Data Sampling Interval : (sec)
Accuracy (% rel h) : (% rel h)
Aspiration : (UNASPIRATED/NATURAL/FAN/etc)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
8.2.1 Pressure Sensor Model :
Manufacturer : Vaisala PTU 303
Serial Number : R4310960
Data Sampling Interval : 30 sec
Accuracy : (hPa)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : 2019-12-09/CCYY-MM-DD
Notes : (multiple lines)
8.2.x Pressure Sensor Model :
Manufacturer :
Serial Number :
Data Sampling Interval : (sec)
Accuracy : (hPa)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
8.3.1 Temp. Sensor Model :
Manufacturer : Vaisala PTU 303
Serial Number : R4310960
Data Sampling Interval : 30 sec
Accuracy : (deg C)
Aspiration : (UNASPIRATED/NATURAL/FAN/etc)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : 2019-12-09/CCYY-MM-DD
Notes : (multiple lines)
8.3.x Temp. Sensor Model :
Manufacturer :
Serial Number :
Data Sampling Interval : (sec)
Accuracy : (deg C)
Aspiration : (UNASPIRATED/NATURAL/FAN/etc)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
8.4.1 Water Vapor Radiometer :
Manufacturer :
Serial Number :
Distance to Antenna : (m)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
8.4.x Water Vapor Radiometer :
Manufacturer :
Serial Number :
Distance to Antenna : (m)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
8.5.1 Other Instrumentation : (multiple lines)
8.5.x Other Instrumentation : (multiple lines)
9. Local Ongoing Conditions Possibly Affecting Computed Position
9.1.1 Radio Interference :
Observed Degradations : (SN RATIO/DATA GAPS/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
9.1.2 Radio Interferences :
Observed Degradations : (SN RATIO/DATA GAPS/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
9.1.3 Radio Interferences :
Observed Degradations : (SN RATIO/DATA GAPS/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
9.1.x Radio Interference : (TV/CELL PHONE ANTENNA/RADAR/etc)
Observed Degradations : (SN RATIO/DATA GAPS/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
9.2.1 Multipath Sources : (METAL ROOF/DOME/VLBI ANTENNA/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
9.2.x Multipath Sources : (METAL ROOF/DOME/VLBI ANTENNA/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
9.3.1 Signal Obstructions : (TREES/BUILDLINGS/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
9.3.x Signal Obstructions : (TREES/BUILDLINGS/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
10. Local Episodic Effects Possibly Affecting Data Quality
10.1 Date : (CCYY-MM-DD/CCYY-MM-DD)
Event : (TREE CLEARING/CONSTRUCTION/etc)
10.x Date : (CCYY-MM-DD/CCYY-MM-DD)
Event : (TREE CLEARING/CONSTRUCTION/etc)
11. On-Site, Point of Contact Agency Information
Agency :
Preferred Abbreviation :
Mailing Address :
Primary Contact
Contact Name :
Telephone (primary) :
Telephone (secondary) :
Fax :
E-mail :
Secondary Contact
Contact Name :
Telephone (primary) :
Telephone (secondary) :
Fax :
E-mail :
Additional Information :
12. Responsible Agency (if different from 11.)
Agency : GEOSPATIAL INFORMATION AGENCY (BIG)
Preferred Abbreviation : BIG (formerly known as BAKOSURTANAL)
Mailing Address : info@big.go.id
Primary Contact
Contact Name : Munawar Kholil
Telephone (primary) : +62 821 13612683
Telephone (secondary) :
Fax :
E-mail : munawar.kholil@big.go.id
Secondary Contact
Contact Name :
Telephone (primary) :
Telephone (secondary) :
Fax :
E-mail :
Additional Information : (multiple lines)
13. More Information
Primary Data Center :
Secondary Data Center :
URL for More Information :
Hardcopy on File
Site Map : (Y or URL)
Site Diagram : (Y or URL)
Horizon Mask : (Y or URL)
Monument Description : (Y or URL)
Site Pictures : (Y or URL)
Additional Information : (multiple lines)
Antenna Graphics with Dimensions
TRM159900.00
-----
/ \
| |
+-------------------------------------------------+ <-- 0.1020 TCR
| |
| |
| |
| |
+-+-------------------------------------------------+-+ <-- 0.0381
+-------------------+-------------+-------------------+ <-- 0.0350 BCR
| |
=| |
+------x------+ <-- 0.0000 BPA=ARP
RXC=NRP
<-- 0.3810 -->
ftp://www.igs.org/pub/station/general/antenna.gra
Sketch
Office
Receiver & indoor equipments
visual_gps.foto_pilar
Sky-Plot
Diagram Sky-Plot merupakan diagram yang menjelaskan efek multipath dan efek kanduangan uap air pada data pengamatan. Diagram ini didapatkan dari pengamatan one-way (undifferenced) LC phase residual yang diproyeksikan pada bentuk diagram azimuth dan elevasi dimana lokasi titik tengah pada diagram tersebut merupakan lokasi antena pengamatan GNSS. Diagram ditampilkan setiap 4 jam dalam 1 hari pengamatan. Nilai residu yang tinggi ditempat yang sama dalam waktu yang berbeda-beda dikategorikan sebagai residu akibat multipath, sedangkan kemunculan nilai residu tinggi pada lokasi tertentu dan waktu tertentu merupakan residu akibat kandungan uap air. Lengkungan merah dan biru merupakan trek satelit, warna kuning dan hijau masing-masing menunjukan residu positif dan negative. Batang merah menunjukan skala yang dalam hal ini ditetapkan 10 mm.
Informasi Sky-Plot ini didapatkan dari hasil pemrosesan GAMIT harian.
Phase Residual Plots
Phase Residual Plots menunjukan dua hal: pertama, tampilan diagram batang residual pengamatan setiap elevasi (dalam hal ini setiap interval elevasi 10 derajat). Semakin diagram membentuk distribusi normal pada setiap interval elevasinya, menunjukan kesalahan sistematis pengamatan pada setiap interval elevasinya sudah tertangani. Kedua, tampilan menunjukan Phase vs Elevation Angle. Garis hijau menunjukan elevation-dependent noise model , titik-titik hitam menunjukan distribusi residual dari elevasi 0 derajat hingga 90 derajat, garis merah tebal menunjukan nilai residual hasil smoothing. Bentuk garis merah tebal yang tidak menyimpang dari garus hijau menunjukan tidak adanya kesalahan penggunaan model antena. Penyimpangan nilai residual pada elevasi menengah ke atas diakibatkan oleh efek atmosfer.
Informasi Phase Residual Plot ini didapatkan dari hasil pemrosesan GAMIT harian.
