Monitoring Stasiun
Station Displacement CALO (Limboto)
Northing
Easting
Up
Zenith Wet Delay
Number of Satellites
GPS
GLONASS
Galileo
Beidou
Position Dilution Of Precision (PDOP)
CALO Site Information Form
Indonesia Continuously Operating Reference Station (Ina-CORS)
See Instructions at:
ftp://www.igs.org/pub/station/general/sitelog_instr.txt
0. Form
Prepared by (full name) : Isnaini Annuriah Mundakir
Date Prepared : 2022-04-19
Report Type : NEW
If Update:
Previous Site Log :
Modified/Added Sections :
1. Site Identification of the GNSS Monument
Site Name : Limboto
Four Character ID : CALO
Monument Inscription :
IERS DOMES Number :
CDP Number :
Monument Description : PILLAR ON THE GROUND
Height of the Monument : 3 m
Monument Foundation : CONCRETE
Foundation Depth : 1.5 m
Marker Description : (CHISLED CROSS/DIVOT/BRASS NAIL/etc)
Date Installed : 2019-06-27
Geologic Characteristic : (BEDROCK/CLAY/CONGLOMERATE/GRAVEL/SAND/etc)
Bedrock Type : (IGNEOUS/METAMORPHIC/SEDIMENATRY)
Bedrock Condition : (FRESH/JOINTED/WEATHERED)
Fracture Spacing : (1-10 cm/11-50 cm/51-200 cm/over 200 cm)
Fault zones nearby : (YES/NO/Name of the zone)
Distance/activity : (multiple lines)
Additional Information : (multiple lines)
2. Site Location Information
City or Town : Gorontalo
State or Province : Gorontalo
Country : Indonesia
Tectonic Plate : Molucca Sea
Approximate Position (ITRF)
X coordinate (m) : -3471944.262
Y coordinate (m) : 5349993.944
Z coordinate (m) : 69472.41908
Latitude (N is +) : +003741.8492400000001
Longitude (E is +) : +1225855.3806100000156
Elevation (m,ellips.) : 83.057
Additional Information : ARP IGS14 Position (Epoch 2021.00)
3. GNSS Receiver Information
3.1 Receiver Type : LEICA GR50
Satellite System : GPS+GLO+GAL+BDS+QZSS
Serial Number : 1870998
Firmware Version : 4.31.101
Elevation Cutoff Setting : 10 deg
Date Installed : 2019-06-27
Date Removed : (CCYY-MM-DDThh:mmZ)
Temperature Stabiliz. : none
Additional Information :
3.x Receiver Type :
Satellite System :
Serial Number :
Firmware Version :
Elevation Cutoff Setting : 10 deg
Date Installed :
Date Removed : (CCYY-MM-DDThh:mmZ)
Temperature Stabiliz. : none
Additional Information :
4. GNSS Antenna Information
4.1 Antenna Type : LEIAR20
Serial Number : 22080003
Antenna Reference Point : ARP
Marker->ARP Up Ecc. (m) : 0.0550
Marker->ARP North Ecc(m) : 0.0000
Marker->ARP East Ecc(m) : 0.0000
Alignment from True N : 0 deg
Antenna Radome Type : LEIM
Radome Serial Number :
Antenna Cable Type : -
Antenna Cable Length : -
Date Installed : 2019-06-27
Date Removed : (CCYY-MM-DDThh:mmZ)
Additional Information : -
4.x Antenna Type :
Serial Number :
Antenna Reference Point : ARP
Marker->ARP Up Ecc. (m) :
Marker->ARP North Ecc(m) : 0.0000
Marker->ARP East Ecc(m) : 0.0000
Alignment from True N : 0 deg
Antenna Radome Type :
Radome Serial Number :
Antenna Cable Type : -
Antenna Cable Length : -
Date Installed :
Date Removed : (CCYY-MM-DDThh:mmZ)
Additional Information :
5. Surveyed Local Ties
5.x Tied Marker Name :
Tied Marker Usage : (SLR/VLBI/LOCAL CONTROL/FOOTPRINT/etc)
Tied Marker CDP Number : (A4)
Tied Marker DOMES Number : (A9)
Differential Components from GNSS Marker to the tied monument (ITRS)
dx (m) : (m)
dy (m) : (m)
dz (m) : (m)
Accuracy (mm) : (mm)
Survey method : (GPS CAMPAIGN/TRILATERATION/TRIANGULATION/etc)
Date Measured : (CCYY-MM-DDThh:mmZ)
Additional Information : (multiple lines)
6. Frequency Standard
6.1 Standard Type : INTERNAL
Input Frequency : (if external)
Effective Dates : 2019-06-27/CCYY-MM-DD
Notes : (multiple lines)
6.x Standard Type : (INTERNAL or EXTERNAL H-MASER/CESIUM/etc)
Input Frequency : (if external)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
7. Collocation Information
7.1 Instrumentation Type : (GPS/GLONASS/DORIS/PRARE/SLR/VLBI/TIME/etc)
Status : (PERMANENT/MOBILE)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
7.x Instrumentation Type : (GPS/GLONASS/DORIS/PRARE/SLR/VLBI/TIME/etc)
Status : (PERMANENT/MOBILE)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
8. Meteorological Instrumentation
8.1.1 Humidity Sensor Model :
Manufacturer : Vaisala PTU 303
Serial Number : R1820656
Data Sampling Interval : 30 sec
Accuracy (% rel h) : (% rel h)
Aspiration : (UNASPIRATED/NATURAL/FAN/etc)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : 2019-06-27/CCYY-MM-DD
Notes : (multiple lines)
8.1.x Humidity Sensor Model :
Manufacturer :
Serial Number :
Data Sampling Interval : (sec)
Accuracy (% rel h) : (% rel h)
Aspiration : (UNASPIRATED/NATURAL/FAN/etc)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
8.2.1 Pressure Sensor Model :
Manufacturer : Vaisala PTU 303
Serial Number : R1820656
Data Sampling Interval : 30 sec
Accuracy : (hPa)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : 2019-06-27/CCYY-MM-DD
Notes : (multiple lines)
8.2.x Pressure Sensor Model :
Manufacturer :
Serial Number :
Data Sampling Interval : (sec)
Accuracy : (hPa)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
8.3.1 Temp. Sensor Model :
Manufacturer : Vaisala PTU 303
Serial Number : R1820656
Data Sampling Interval : 30 sec
Accuracy : (deg C)
Aspiration : (UNASPIRATED/NATURAL/FAN/etc)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : 2019-06-27/CCYY-MM-DD
Notes : (multiple lines)
8.3.x Temp. Sensor Model :
Manufacturer :
Serial Number :
Data Sampling Interval : (sec)
Accuracy : (deg C)
Aspiration : (UNASPIRATED/NATURAL/FAN/etc)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
8.4.1 Water Vapor Radiometer :
Manufacturer :
Serial Number :
Distance to Antenna : (m)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
8.4.x Water Vapor Radiometer :
Manufacturer :
Serial Number :
Distance to Antenna : (m)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
8.5.1 Other Instrumentation : (multiple lines)
8.5.x Other Instrumentation : (multiple lines)
9. Local Ongoing Conditions Possibly Affecting Computed Position
9.1.1 Radio Interference :
Observed Degradations : (SN RATIO/DATA GAPS/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
9.1.2 Radio Interferences :
Observed Degradations : (SN RATIO/DATA GAPS/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
9.1.3 Radio Interferences :
Observed Degradations : (SN RATIO/DATA GAPS/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
9.1.x Radio Interference : (TV/CELL PHONE ANTENNA/RADAR/etc)
Observed Degradations : (SN RATIO/DATA GAPS/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
9.2.1 Multipath Sources : (METAL ROOF/DOME/VLBI ANTENNA/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
9.2.x Multipath Sources : (METAL ROOF/DOME/VLBI ANTENNA/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
9.3.1 Signal Obstructions : (TREES/BUILDLINGS/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
9.3.x Signal Obstructions : (TREES/BUILDLINGS/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
10. Local Episodic Effects Possibly Affecting Data Quality
10.1 Date : (CCYY-MM-DD/CCYY-MM-DD)
Event : (TREE CLEARING/CONSTRUCTION/etc)
10.x Date : (CCYY-MM-DD/CCYY-MM-DD)
Event : (TREE CLEARING/CONSTRUCTION/etc)
11. On-Site, Point of Contact Agency Information
Agency :
Preferred Abbreviation :
Mailing Address :
Primary Contact
Contact Name :
Telephone (primary) :
Telephone (secondary) :
Fax :
E-mail :
Secondary Contact
Contact Name :
Telephone (primary) :
Telephone (secondary) :
Fax :
E-mail :
Additional Information :
12. Responsible Agency (if different from 11.)
Agency : GEOSPATIAL INFORMATION AGENCY (BIG)
Preferred Abbreviation : BIG (formerly known as BAKOSURTANAL)
Mailing Address : info@big.go.id
Primary Contact
Contact Name : Munawar Kholil
Telephone (primary) : +62 821 13612683
Telephone (secondary) :
Fax :
E-mail : munawar.kholil@big.go.id
Secondary Contact
Contact Name :
Telephone (primary) :
Telephone (secondary) :
Fax :
E-mail :
Additional Information : (multiple lines)
13. More Information
Primary Data Center :
Secondary Data Center :
URL for More Information :
Hardcopy on File
Site Map : (Y or URL)
Site Diagram : (Y or URL)
Horizon Mask : (Y or URL)
Monument Description : (Y or URL)
Site Pictures : (Y or URL)
Additional Information : (multiple lines)
Antenna Graphics with Dimensions
LEIAR20
+-----+ <-- 0.1613
/ \
| |
+----------------+-----------+----------------+ <-- 0.1113 TCR
| |
| |
| |
| |
+-+---------------------------------------------+-+
+------------------+-----------+------------------+ <-- 0.0323 BCR
| |
| |
+----+ +----+ <-- 0.0013 BPA
+x+ <-- 0.0000 BAM=ARP
NOM=NRP
<-- 0.3200 -->
ftp://www.igs.org/pub/station/general/antenna.gra

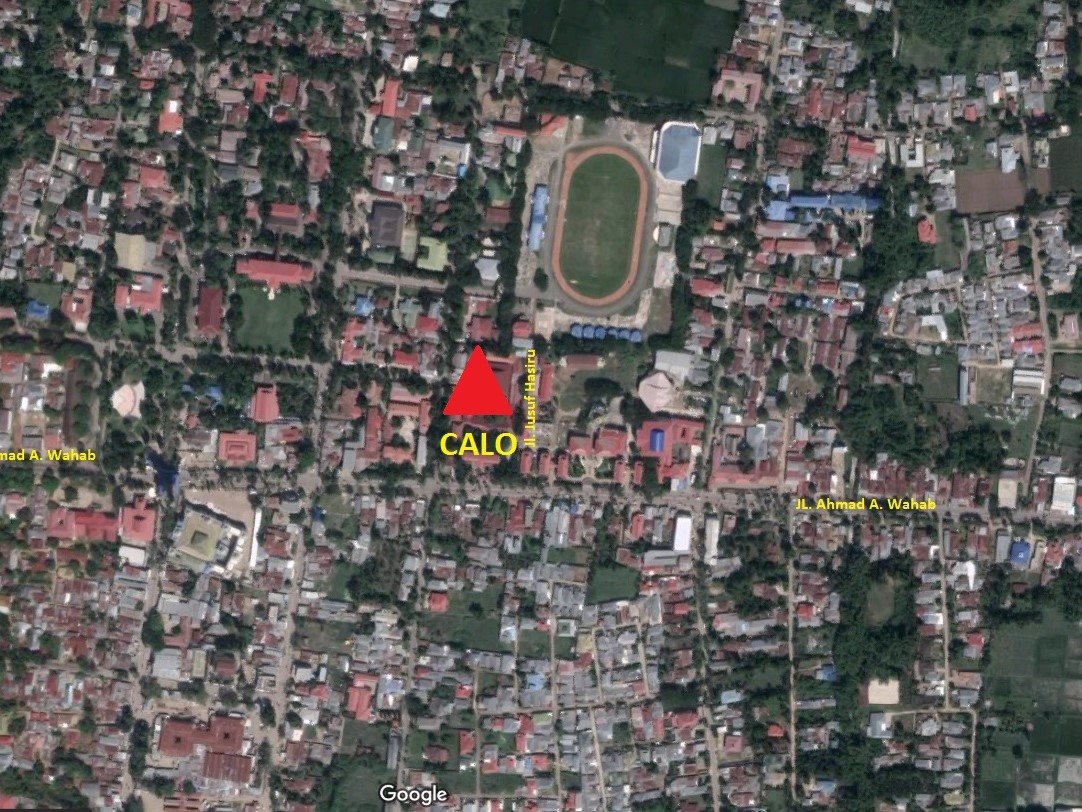

Sketch

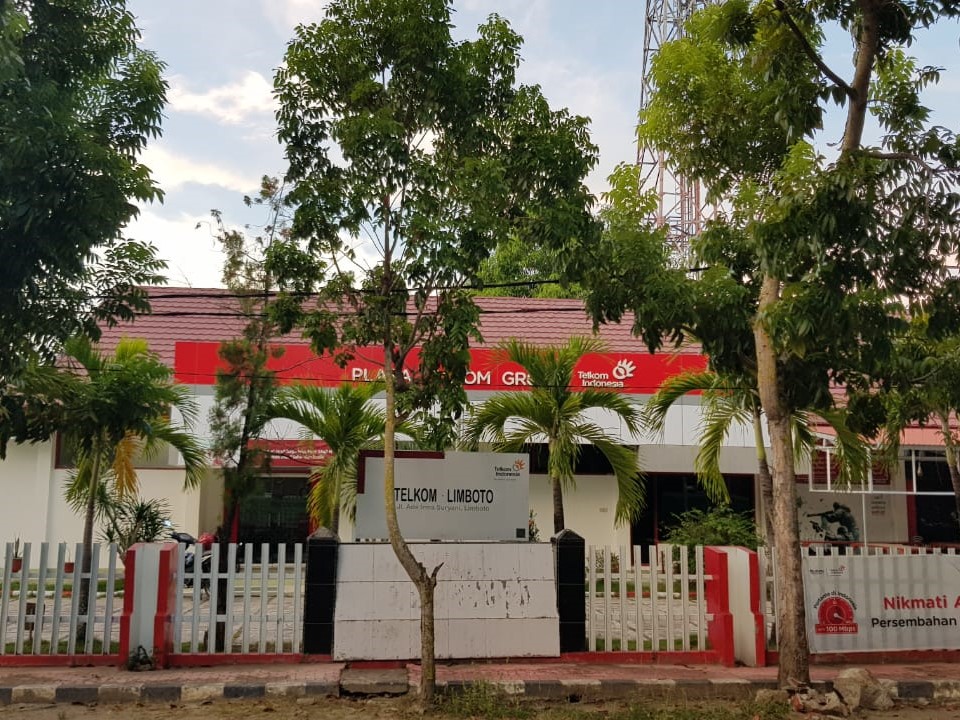

Office

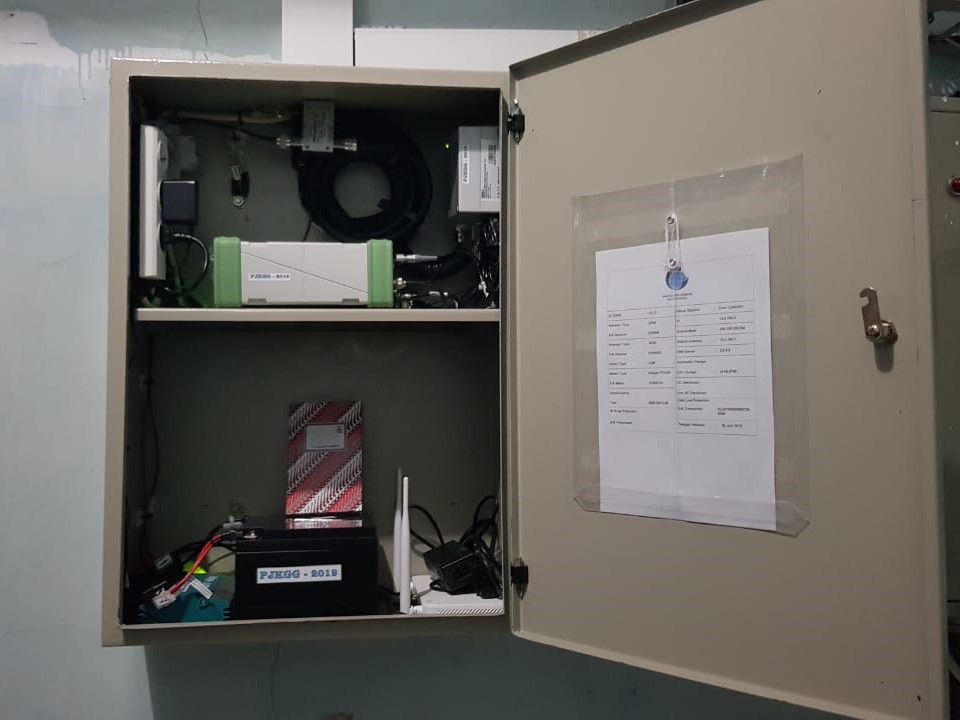

Receiver & indoor equipments

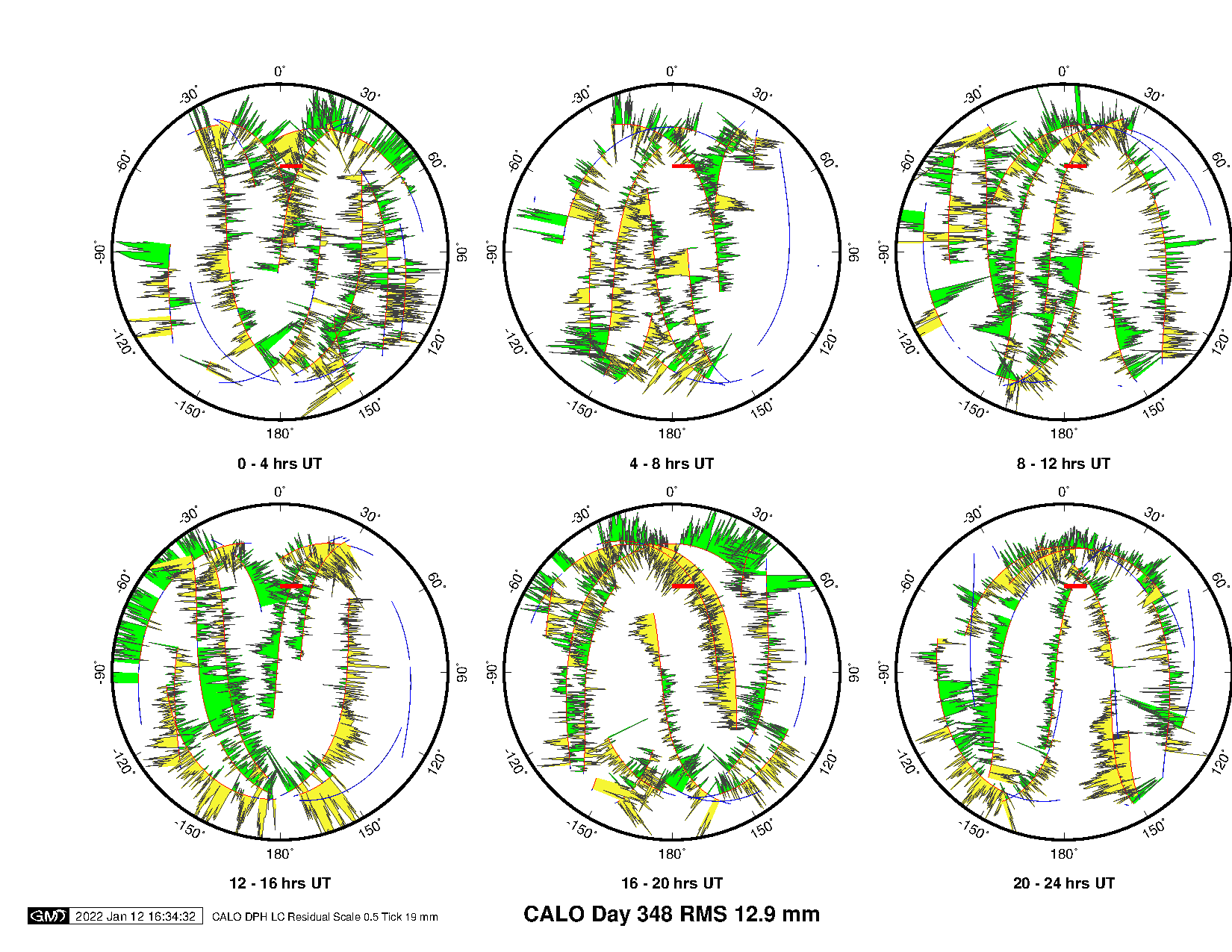

Sky-Plot
Diagram Sky-Plot merupakan diagram yang menjelaskan efek multipath dan efek kanduangan uap air pada data pengamatan. Diagram ini didapatkan dari pengamatan one-way (undifferenced) LC phase residual yang diproyeksikan pada bentuk diagram azimuth dan elevasi dimana lokasi titik tengah pada diagram tersebut merupakan lokasi antena pengamatan GNSS. Diagram ditampilkan setiap 4 jam dalam 1 hari pengamatan. Nilai residu yang tinggi ditempat yang sama dalam waktu yang berbeda-beda dikategorikan sebagai residu akibat multipath, sedangkan kemunculan nilai residu tinggi pada lokasi tertentu dan waktu tertentu merupakan residu akibat kandungan uap air. Lengkungan merah dan biru merupakan trek satelit, warna kuning dan hijau masing-masing menunjukan residu positif dan negative. Batang merah menunjukan skala yang dalam hal ini ditetapkan 10 mm.
Informasi Sky-Plot ini didapatkan dari hasil pemrosesan GAMIT harian.

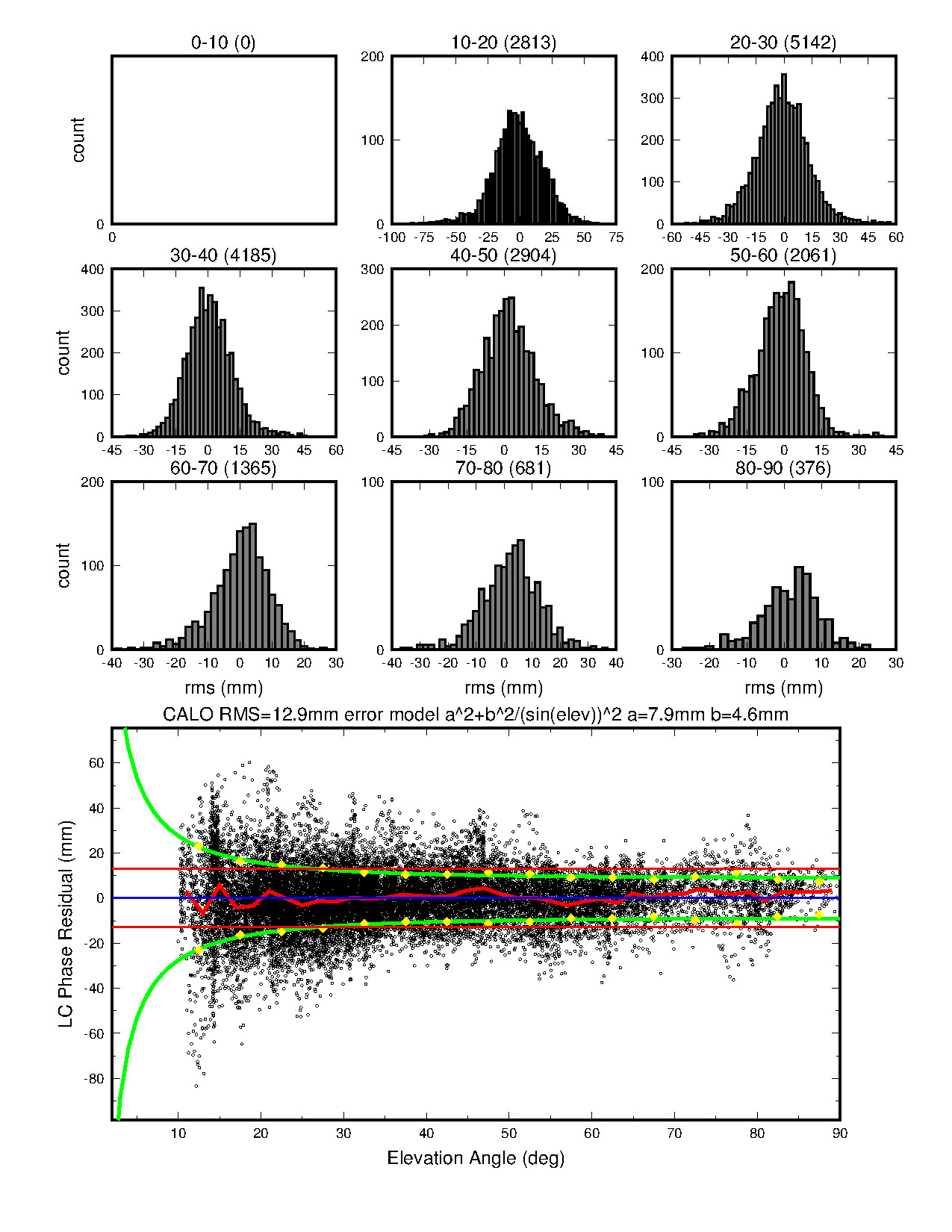

Phase Residual Plots
Phase Residual Plots menunjukan dua hal: pertama, tampilan diagram batang residual pengamatan setiap elevasi (dalam hal ini setiap interval elevasi 10 derajat). Semakin diagram membentuk distribusi normal pada setiap interval elevasinya, menunjukan kesalahan sistematis pengamatan pada setiap interval elevasinya sudah tertangani. Kedua, tampilan menunjukan Phase vs Elevation Angle. Garis hijau menunjukan elevation-dependent noise model , titik-titik hitam menunjukan distribusi residual dari elevasi 0 derajat hingga 90 derajat, garis merah tebal menunjukan nilai residual hasil smoothing. Bentuk garis merah tebal yang tidak menyimpang dari garus hijau menunjukan tidak adanya kesalahan penggunaan model antena. Penyimpangan nilai residual pada elevasi menengah ke atas diakibatkan oleh efek atmosfer.
Informasi Phase Residual Plot ini didapatkan dari hasil pemrosesan GAMIT harian.
